Description
FEATURES
* 5.5-inch full HD IPS screen, provides real picture
* Touch screen operation, easy to use

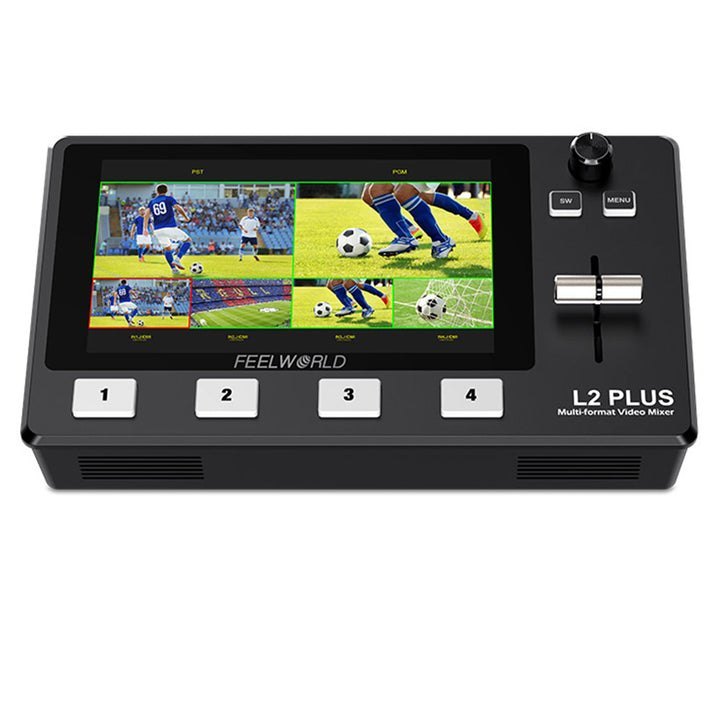

* Real-time 6-picture preview ( 4 inputs sources + PST preview + PGM output picture)
* USB 3.0 fast to live streaming
* PTZ camera control (Up to 8 cameras)
* Chroma key, LOGO overlay
* T-Bar easily switch the transition effects and signal sources
* 15 transition effects and 9 PIP modes, the live picture more vivid
* Audio offers AFV or Line In mode
* Remote control via PC/smartphone APP
SPECIFICATIONS
Display Spec. Input
| Model | L2 PLUS |
| Screen Size | 5.5″ Touch screen |
| Backlight | LED |
Output
| 4 X HDMI | HDMI-A |
Audio
| 1 X HDMI | HDMI-A |
| 1×USB TypeA | USB 3.0 |
Input Solution
| Audio In | 1×3.5mm (can be connect to microphone) |
| Audio Out | 1×3.5mm Stereo Jack |
Output Solution
| HDMI |
| SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60 |
| VESA | | | | | | | | | | | 1920X1200@60 |
General
| HDMI |
| SMPTE 720p@50/60|1080p@24/25/30/50/60 |
| VESA | | | | 1360X768@60 |
| USB Streaming |
| 1280X720@50/60 | | | 1920X1080@24/25/30/50/60 |
| Note: Please refer connected computer for applicable resolution support |
| Input Voltage | DC 12V / 2A |
| Max Power | 21W |
| Working Temperature | 0 50 |
| Humidity | 5%~85% |
| Unit Size | 191(L) x 110(W) x 43(H)mm |
| Unit Weight | 610g |
| Color Box Size | 260(L)*130(W)*82(H)mm |
| Outer Carton Qty | 15 |
| Outer Carton Size | 470*275*480mm |
| Gross Weight | 16.6kgs |
