• Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI)
• Both transmitter and receiver have clock recovery function; (clock restorer can reduce high frequency jitter and completely regenerate data with pure low jitter clock)
• The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 frequency division sub rate and SMPTE rate of 270Mbps
• Signal input has automatic cable equalization (EQ) function, output has drive (CD) function
• Support plug and play SFP optical module, which can replace optical module corresponding to different distances or interfaces according to the actual site requirements
• Support single-mode single-fiber/dual-fiber transmission distance 10km (default)
• Support status light display
• Support USB device power supply
• Plug and play, without debugging

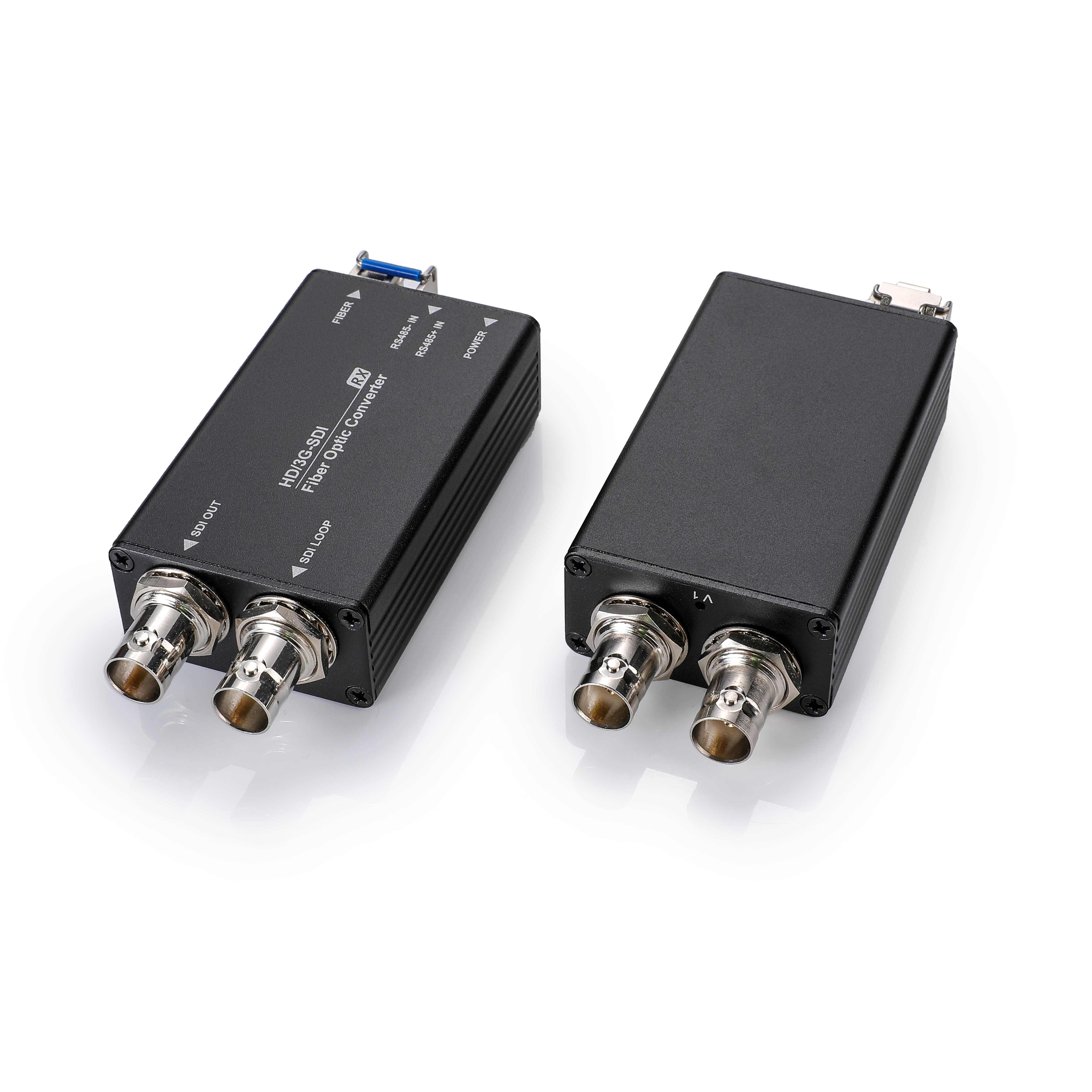

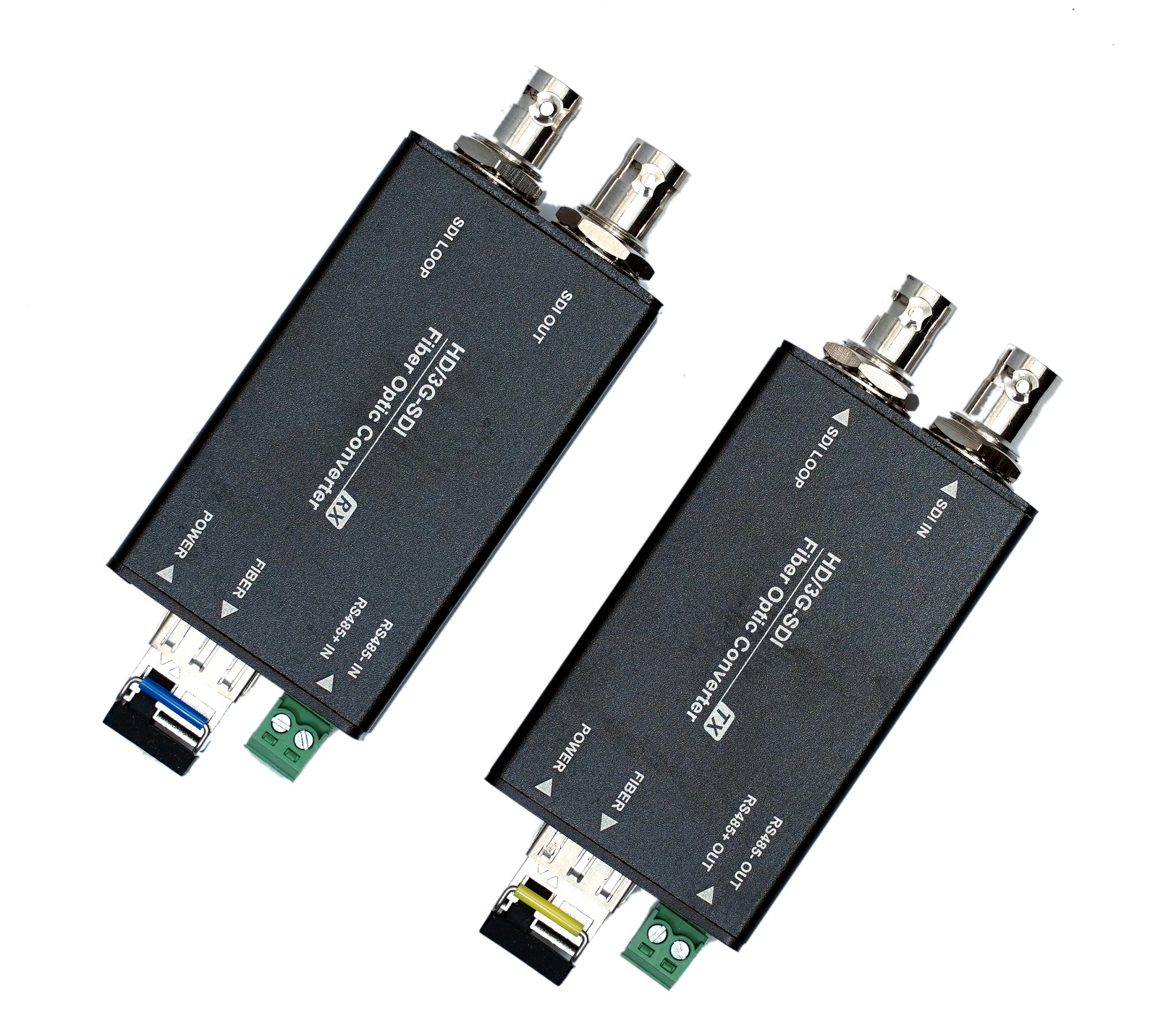

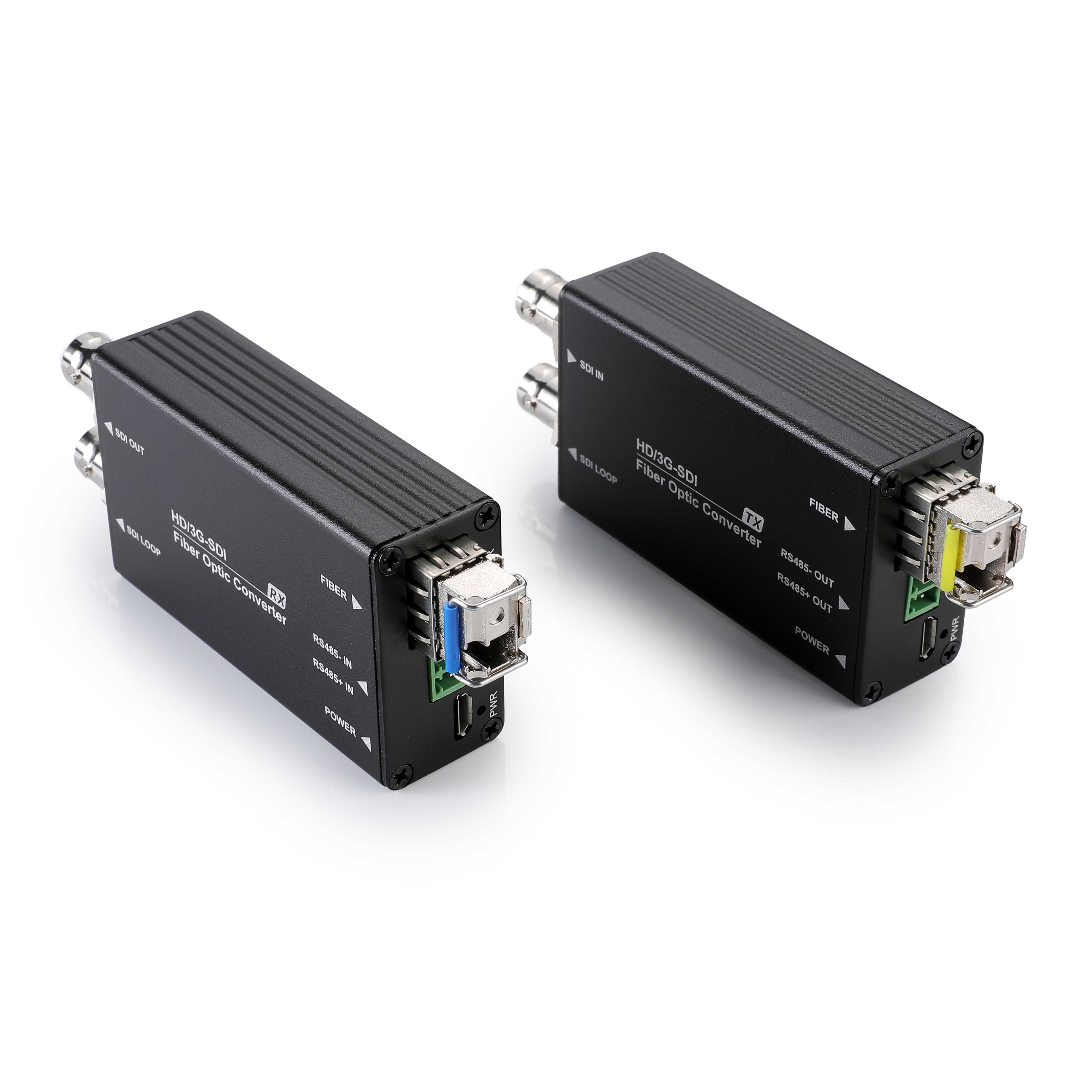

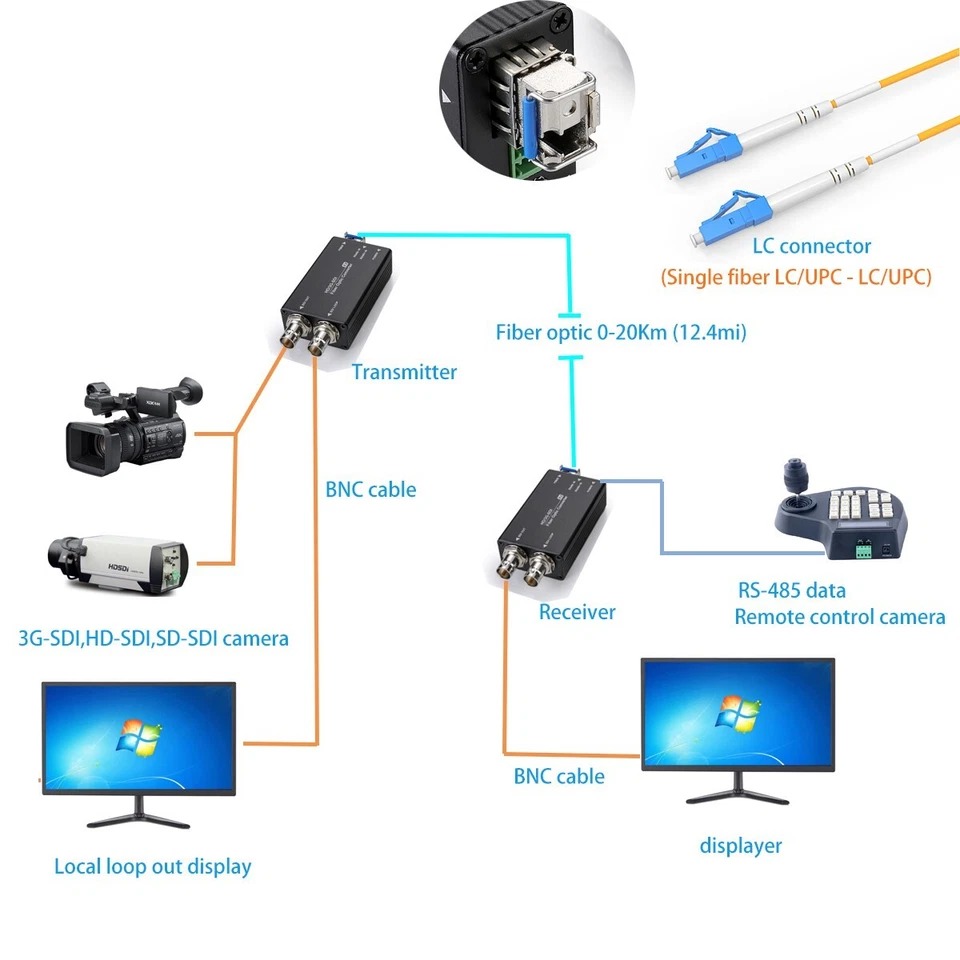

The 12G-SDI UHD audio and video optical converter allows transmission of one 12G-SDI video channel and one reverse RS485 data/tally signal (optional) over a single optical fiber. This setup provides high-quality, uncompressed, and delay-free signal extension up to 10km. This 12G-SDI UHD audio and video optical converter support plug-and-play SFP optical module which can replace the corresponding optical module according to the actual site requirements. The equipment power consumption is less than 1.5W and the Type-C port is used for power supply, which is flexible in use.
